● General Specifications（一般规格）
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+) Black Wire Negative(-)
○ Operation Temperature:-10℃～+70℃    35%～85%RH
○ Storage Temperature:-40℃～+70℃ 35%～85%RH

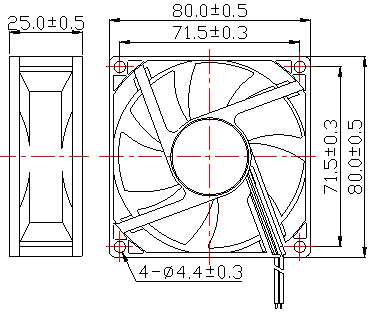

● Dimensions Drawing(外观图）

● Characteristic Curves（特性曲线）


● Specifications（规格）

型号 Model	轴承类型 Bearing  Type	电压 Rated Voltage	频率 Fre- quency	电流 Current	功率 Power	转数 Speed	噪音 Noise Level	风量 Air  Flow		风压 Static Pressure	重量 Weight
		VAC	Hz	A	W	RPM	dBA	M3/min	CFM	mmH20	g
JEH8025B	Ball	110～240	50/60	0.05	5.0	3500	35.1	76.80	45.32	4.94	68
JEM8025B				0.04	3.2	3000	31.7	65.70	38.84	3.63
JEL8025B				0.03	1.8	2500	27.8	54.80	32.37	2.52

Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
