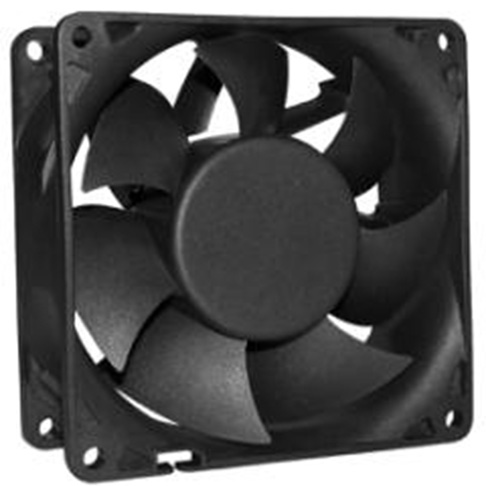

8038

● General Specifications（一般规格）
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+) Black Wire Negative(-)
○ Operation Temperature:-10℃～+70℃    35%～85%RH
○ Storage Temperature:-40℃～+70℃ 35%～85%RH

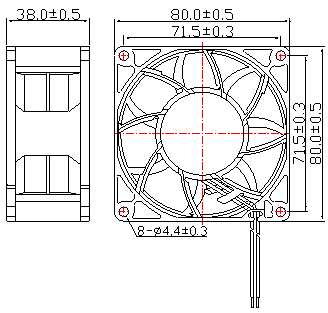

● Dimensions Drawing(外观图）



● Characteristic Curves（特性曲线）


● Specifications（规格）

型号 Model	轴承类型 Bearing  Type	电压 Rated Voltage	频率 Fre- quency	电流 Current	功率 Power	转数 Speed	噪音 Noise Level	风量 Air  Flow		风压 Static Pressure	重量 Weight
		VAC	Hz	A	W	RPM	dBA	M3/min	CFM	mmH20	g
JEH8038B	Ball	110～240	50/60	0.05	4.0	3000	37.2	68.10	40.10	5.30	136
JEM8038B				0.04	3.5	2500	32.5	56.50	33.30	3.70
JEL8038B				0.03	3.0	2000	26.3	44.30	26.10	2.40

Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
