● General Specifications（一般规格）
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+) Black Wire Negative(-)
○ Operation Temperature:-10℃～+70℃    35%～85%RH
○ Storage Temperature:-40℃～+70℃ 35%～85%RH

● Dimensions Drawing(外观图）

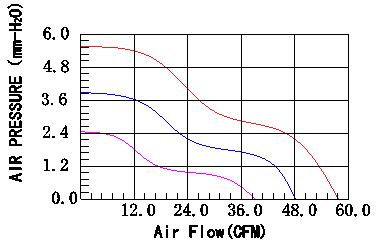

● Characteristic Curves（特性曲线）


● Specifications（规格）

型号 Model	轴承类型 Bearing  Type	电压 Rated Voltage	频率 Fre- quency	电流 Current	功率 Power	转数 Speed	噪音 Noise Level	风量 Air  Flow		风压 Static Pressure	重量 Weight
		VAC	Hz	A	W	RPM	dBA	M3/min	CFM	mmH20	g
JEH9238B	Ball	110～240	50/60	0.08	5.0	3000	42.9	99.78	58.67	5.55	152
JEM9238B				0.06	4.0	2500	39.0	83.15	48.89	3.85
JEL9238B				0.04	3.0	2000	34.2	66.53	39.12	2.47

Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
